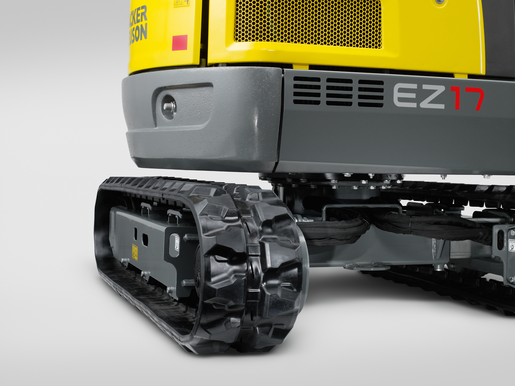

Wacker Neuson EZ17 Zero Tail Mini Excavator

The Wacker Neuson EZ17 is a 1.7 tonne class, 100% zero-tail mini excavator. The upper carriage stays within the track width as it slews, so you can work right up against walls and in tight spaces. It combines the most powerful drive in its class with Wacker Neuson’s LUDV load-independent hydraulic system for smooth, efficient performance.

Key Features

• 100% zero tail swing
• Powerful drive system with LUDV hydraulics (load-independent flow distribution)
• Hydraulic telescopic travel gear, 990 – 1,300mm (39 – 51in), with dozer blade extension
• Optimally protected neck and lift arm cylinder
• Maintenance and disassembly easier than ever before
• Canopy with roof window, ROPS / TOPS / FOPS* compliant
• Hydraulic pilot control via joysticks, with ISO / DIN / SAE / PCSA / EURO control patterns
• Auxiliary hydraulics on the arm for attachments
• Two travel speeds
• EquipCare telematics hardware, subscription ready

Technical Specification

• Operating weight: 1,724 – 2,083kg
• Engine: Yanmar 3-cylinder, liquid-cooled diesel
• Effective power: 13.8kW @ 2,200rpm
• Max. digging depth: 2,486mm
• Breakout force: 18.7kN
• Tear-out force: 9.1kN
• Slew speed: 10rpm
• Travel speed: 4.8km/h (two speeds)
• Hydraulic flow: 39 l/min, variable displacement pump
• Operating pressure: 240 bar
• Undercarriage width: 990 – 1,300mm (telescopic)
• Tracks: 230mm rubber
• Fuel tank: 22 l
• Hydraulic tank: 21 l
• Dimensions (L x W x H): 3,585 x 990 x 2,360mm
• Shipping weight: 1,596kg
• Sound power level (guaranteed): 93dB(A)

What’s Included

Standard equipment: 230mm rubber tracks, dozer blade, boom-mounted work light, canopy, adjustable comfort seat with safety belt, hydraulic oil cooler, toolkit including grease gun and operator’s manual, watertight lockable document box. Various options and configurations are available. Bucket sold separately.

Warranty

Manufacturer’s warranty applies. Contact us for details.
